Fiber Optic Pigtails

The NESGEN-RS® Fiber Optic Pigtail is a high-quality, factory-terminated fiber cable designed for reliable splicing and network terminations. It is available in lengths from 0.5 to 200 meters, featuring an LSZH jacket for enhanced safety in sensitive environments.

Engineered for durability with up to 1000 mating cycles, it offers low insertion loss (<0.30 dB) and high return loss (>45 dB), ensuring stable signal performance. The Zirconia ceramic ferrule, pre-radiused and pre-polished, delivers precise fiber alignment for minimal loss.

Available in multiple jacket colors – Blue, Orange, Green, Brown, Grey, Red, White, Black, Yellow, Violet, Pink, and Aqua – and diameters of 0.9 mm, 2.0 mm, or 3.0 mm, it operates efficiently within a temperature range of -10°C to +60°C. Designed with a minimum bend radius of 30 mm, retention strength of 20 N, and repeatability of ≤0.2 dB, this pigtail is ideal for high-performance fiber optic connections in telecom, data, and enterprise networks.

S.No.	Parameter	Specification	Remarks
1	Make	NESGEN-RS®	–
2	Cord Length	0.5 to 200 Mtr	As Required
3	Jacket Material	LSZH	–
4	Durability	1000 Mating Cycle	–
5	Insertion Loss (Max. in dB)	<0.30	–
6	Return Loss (Min. in dB)	>45	–
7	Cable Colour	Blue / Orange / Green / Brown / Grey / Red / White / Black / Yellow / Violet / Pink / Aqua	As Required
8	Ferrule	Zirconia Ceramic, PreRadiused and pre polished	–
9	Cable Outer Diameter (in mm)	0.9/ 2.0/ 3.0	As Required
10	Temperature Range	-10 deg. C to +60 deg. C	–
11	Bend Radius Min (in mm)	30	–
12	Retention Strength (in N)	20	–
13	Repeatability	</-0.2dB	–

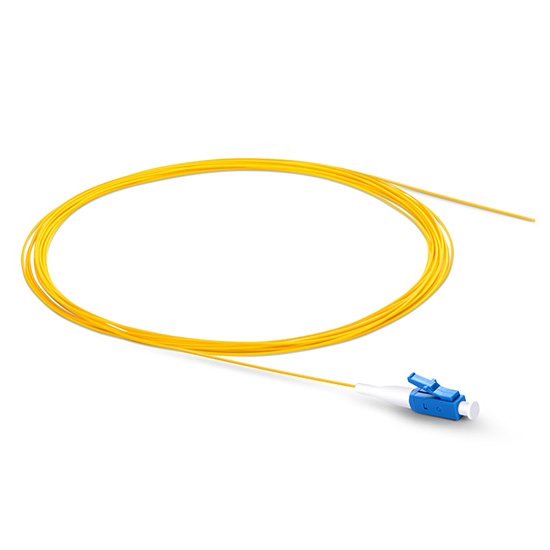

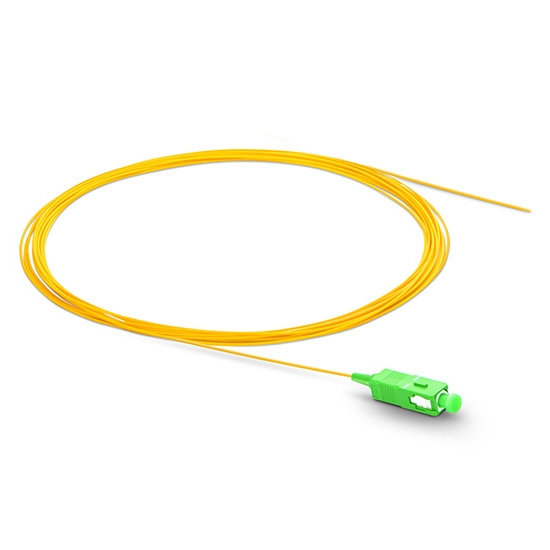

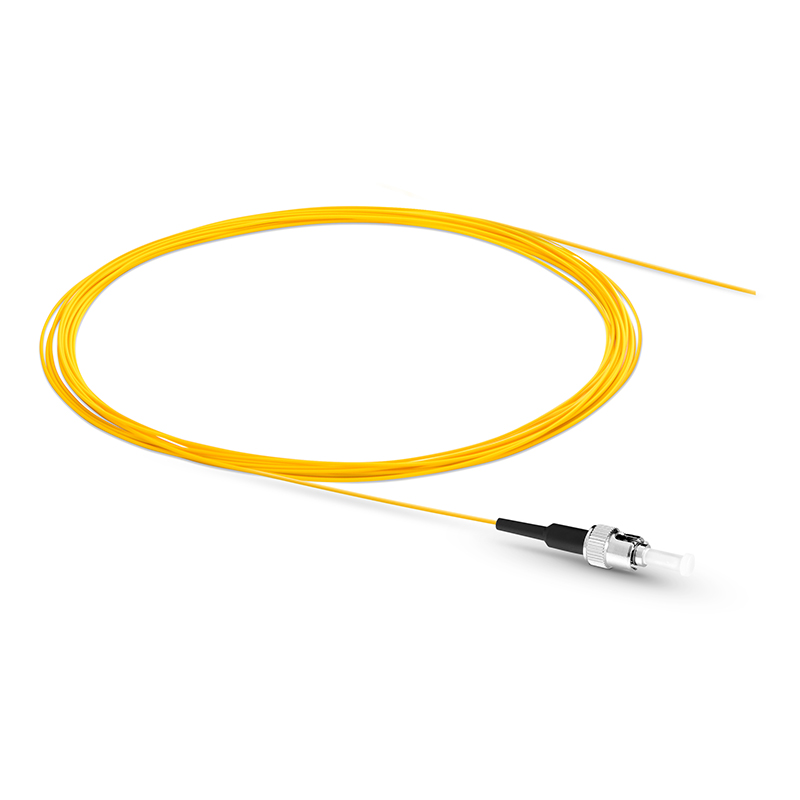

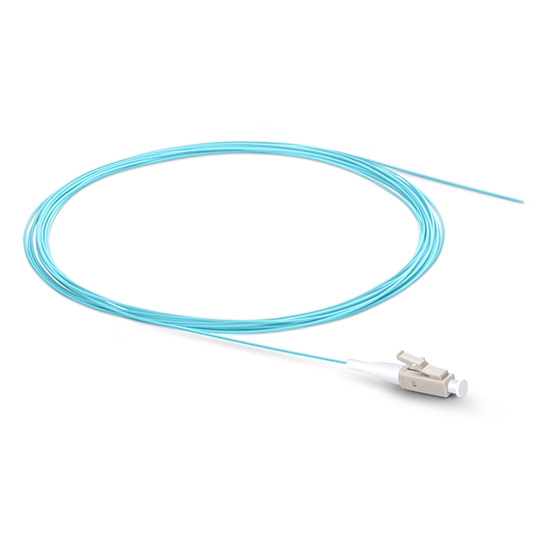

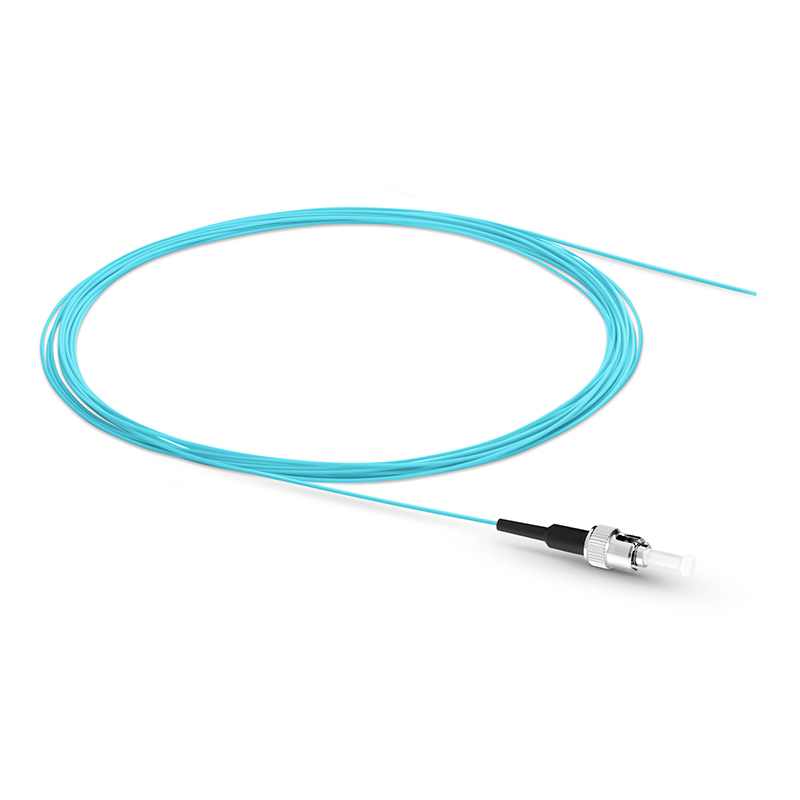

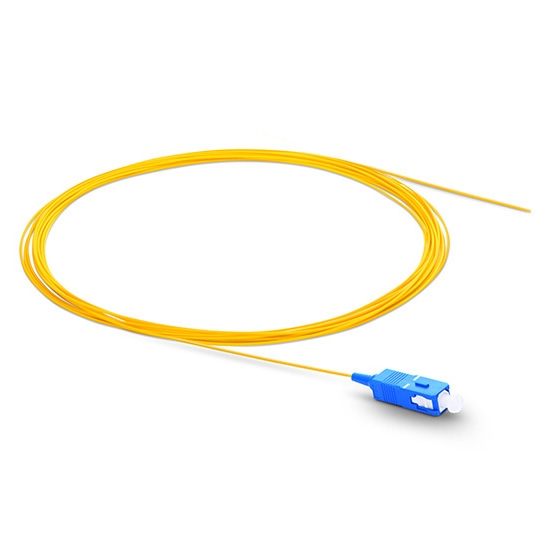

Connector End	SC, LC, FC, ST, E2000
Cable Type	Simplex, Duplex
Fiber Type	Singlemode OS1, Singlemode OS2, Multimode 62.5/125 micron (OM1), Multimode 50/125 micron (OM2), Multimode 50/125 micron (OM3), Multimode 50/125 micron (OM4)
