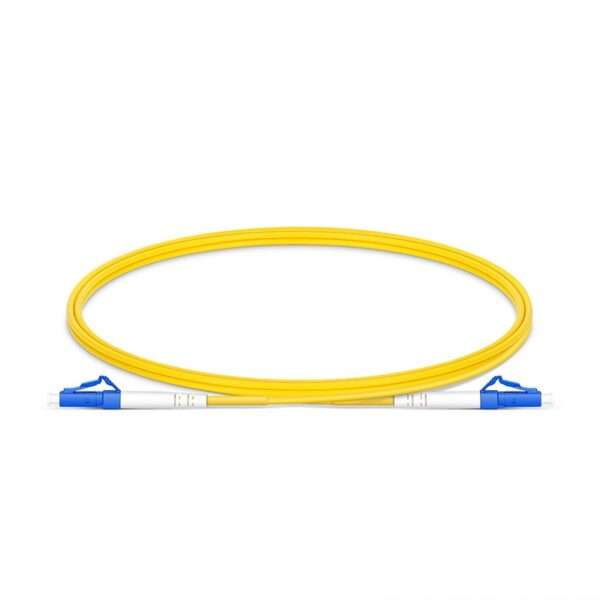

Fiber Optic Patch Cord

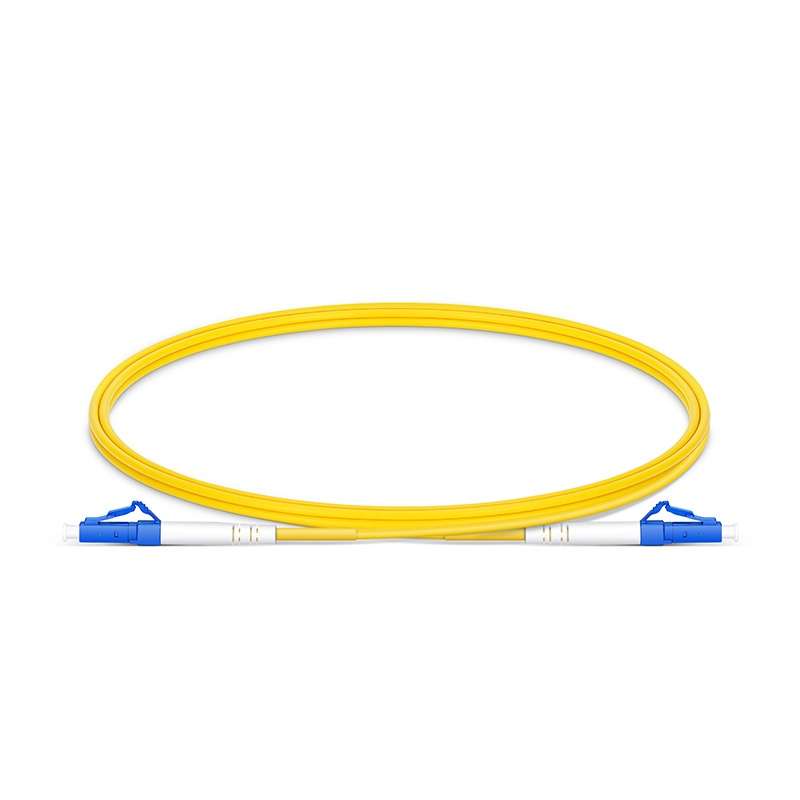

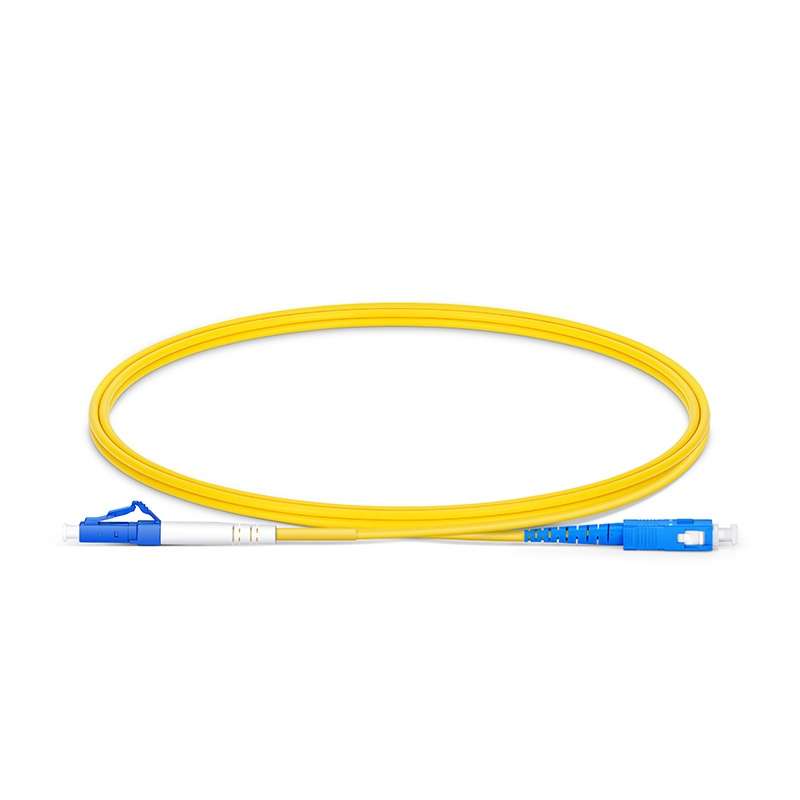

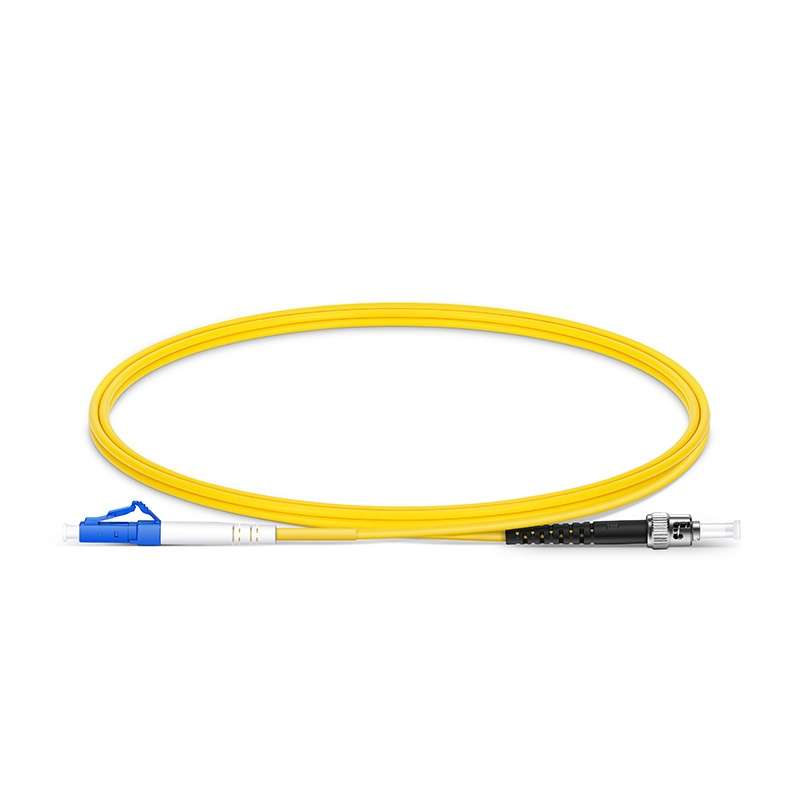

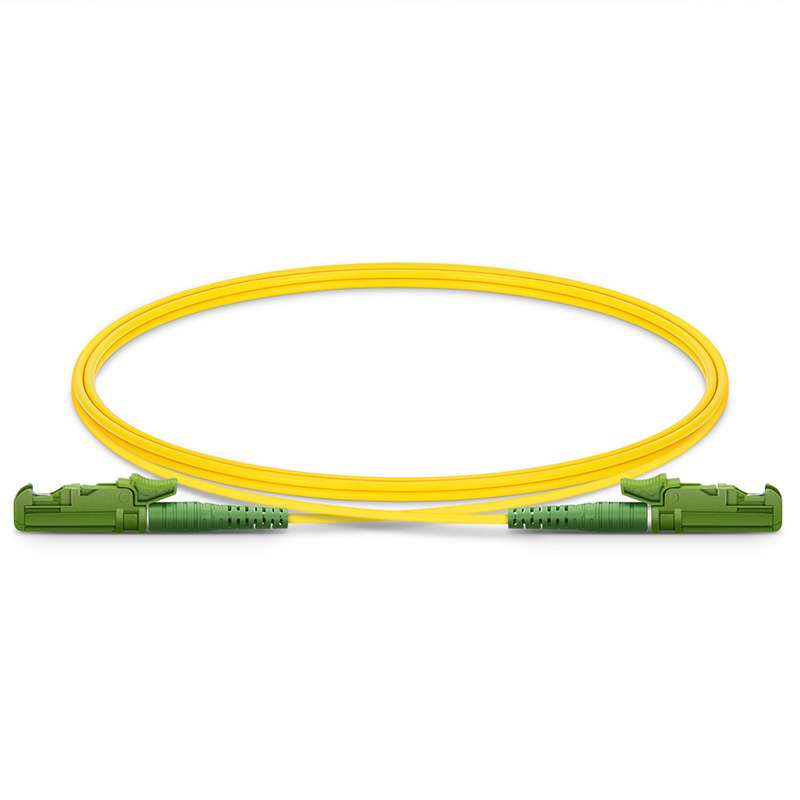

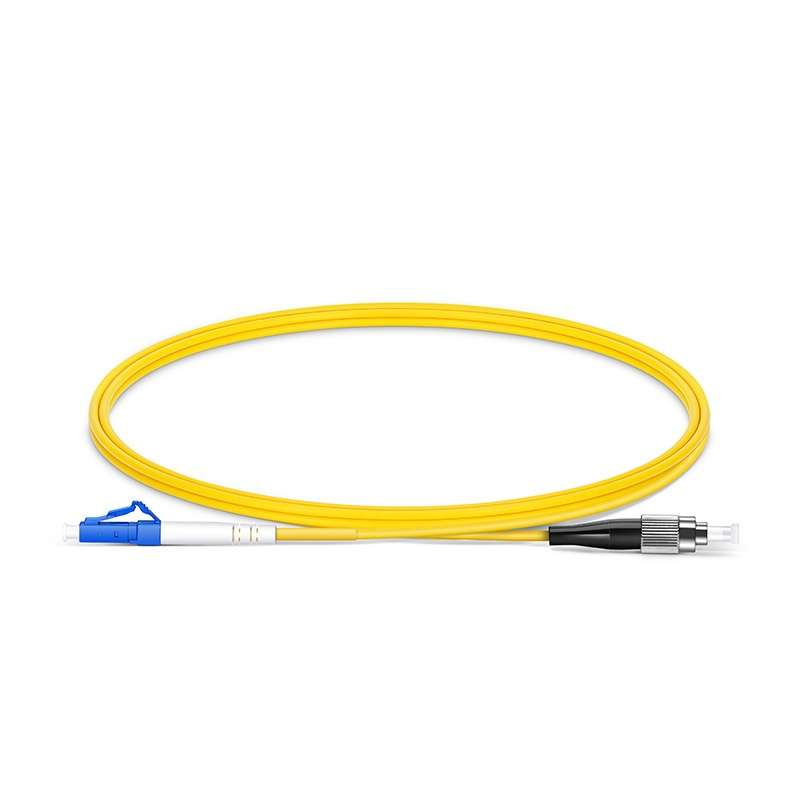

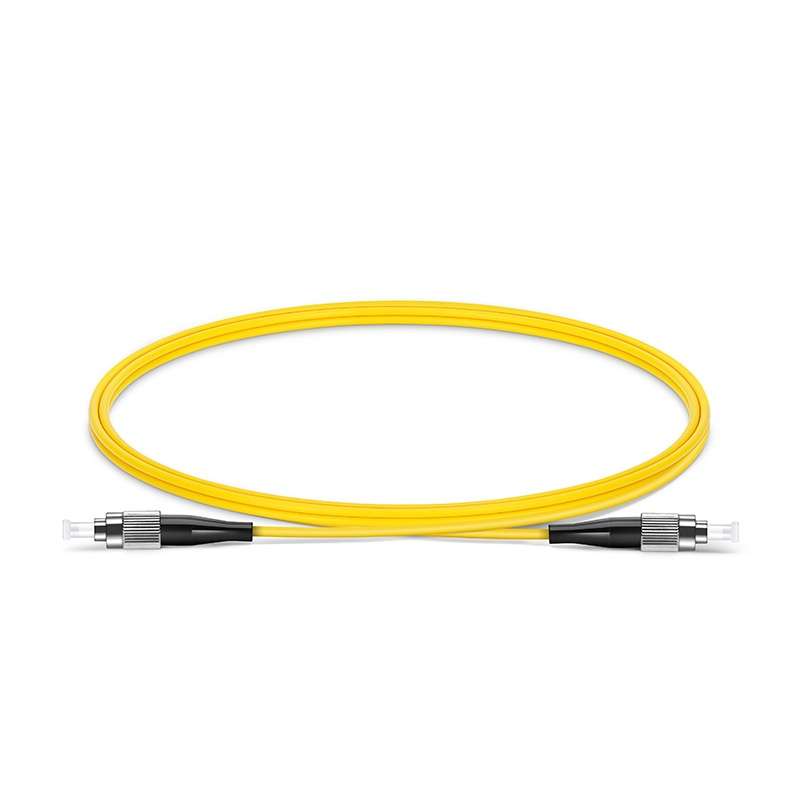

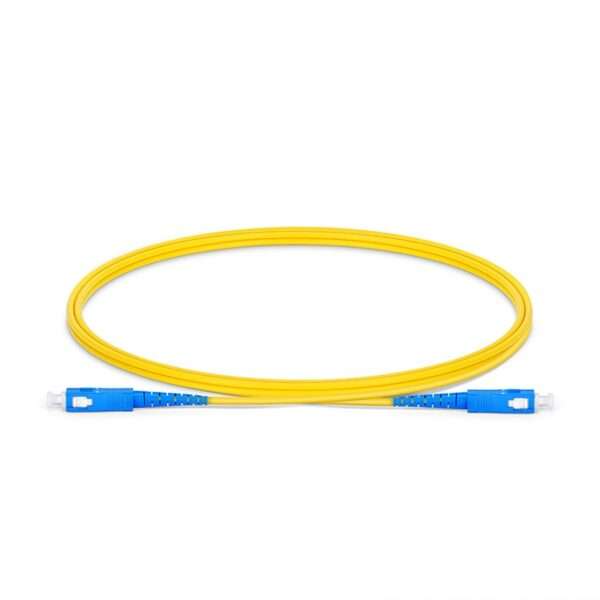

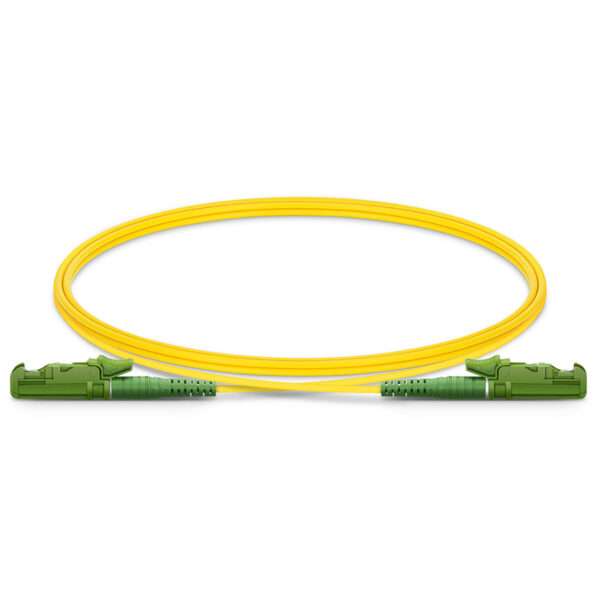

The NESGEN-RS® Fiber Optic Patch Cord is a high-performance connectivity solution designed for reliable and efficient data transmission in optical networks. It is available in both Simplex and Duplex types, with customizable connector ends including SC, LC, FC, ST, and E2000 as per application requirements.

Supporting both Singlemode (9/125 µm) and Multimode fibers (OM1 to OM4), it offers flexible options for various network infrastructures. The patch cord features LSZH (Low Smoke Zero Halogen) jackets, ensuring safety in sensitive environments, and is available in cord lengths ranging from 1 to 200 meters.

Engineered for durability, it supports up to 1000 mating cycles, with insertion loss less than 0.30 dB and return loss greater than 55 dB, ensuring superior signal integrity. The Zirconia ceramic ferrule, pre-radiused and pre-polished, guarantees precise alignment and minimal signal loss.

Available in a range of color codes (Yellow, Orange, Aqua, Magenta) based on fiber type, and outer diameters of 0.9 mm, 2.0 mm, or 3.0 mm, this patch cord performs reliably across a wide temperature range of -10°C to +60°C, making it ideal for a variety of indoor and outdoor applications.

Category: Fiber Patch Cord

Add to wishlist

Description
Additional information

S.No.	Parameter	Specification	Remarks
1	Make	NESGEN-RS®	–
2	Cord Length	1 to 200 Mtr	As Required
3	Jacket Material	LSZH	–
4	Durability	1000 Mating Cycle	–
5	Insertion Loss (Max. in dB)	<0.30	–
6	Return Loss (Min. in dB)	>55	–
7	Cable Colour	Yellow / Orange / Aqua / Magenta	As per Fiber Type
8	Ferrule	Zirconia Ceramic, PreRadiused and pre polished	–
9	Cable Outer Diameter (in mm)	0.9/ 2.0/ 3.0	As Required
10	Temperature Range	-10 deg. C to +60 deg. C	–

Connector A	SC, LC, FC, ST, E2000
Connector B	SC, LC, FC, ST, E2000
Cable Type	Simplex, Duplex
Fiber Type	Singlemode 9/125 micron, Multimode 62.5/125 micron (OM1), Multimode 50/125 micron (OM2), Multimode 50/125 micron (OM3), Multimode 50/125 micron (OM4)
